QSFP-40G-4×SFP-AOC
QSFP-40G-4×SFP-AOC
QSFP-40G-4×SFP-AOC
QSFP-40G-4×SFP-AOC

Halowill

QSFP-40G-4×SFP-AOC

Sale price$99.00

Main description:

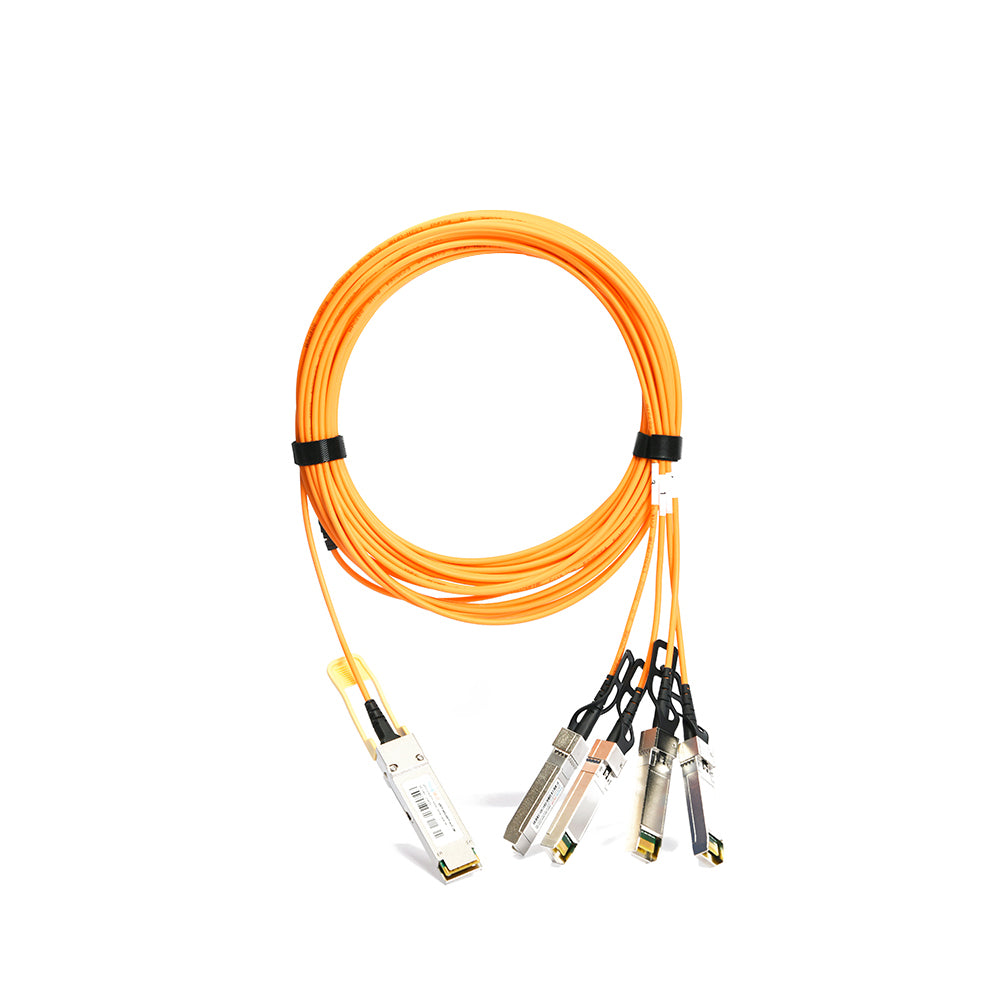

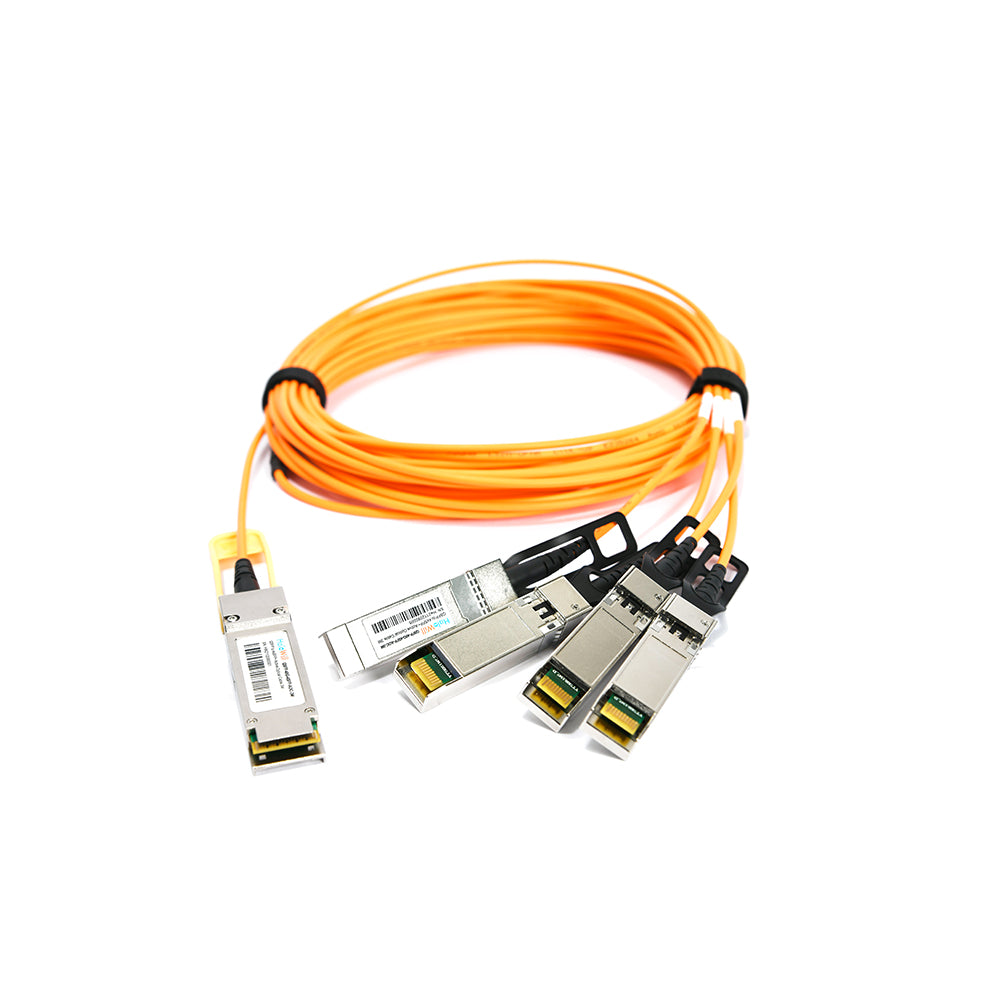

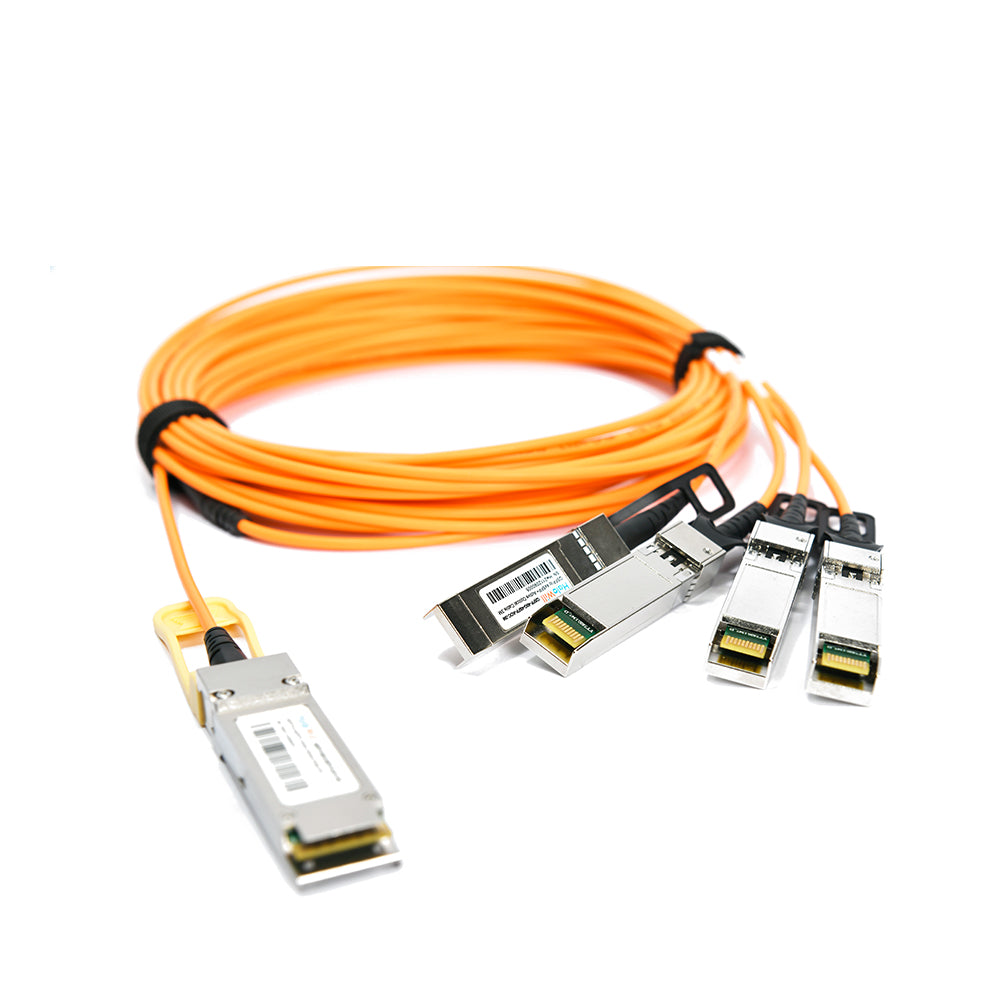

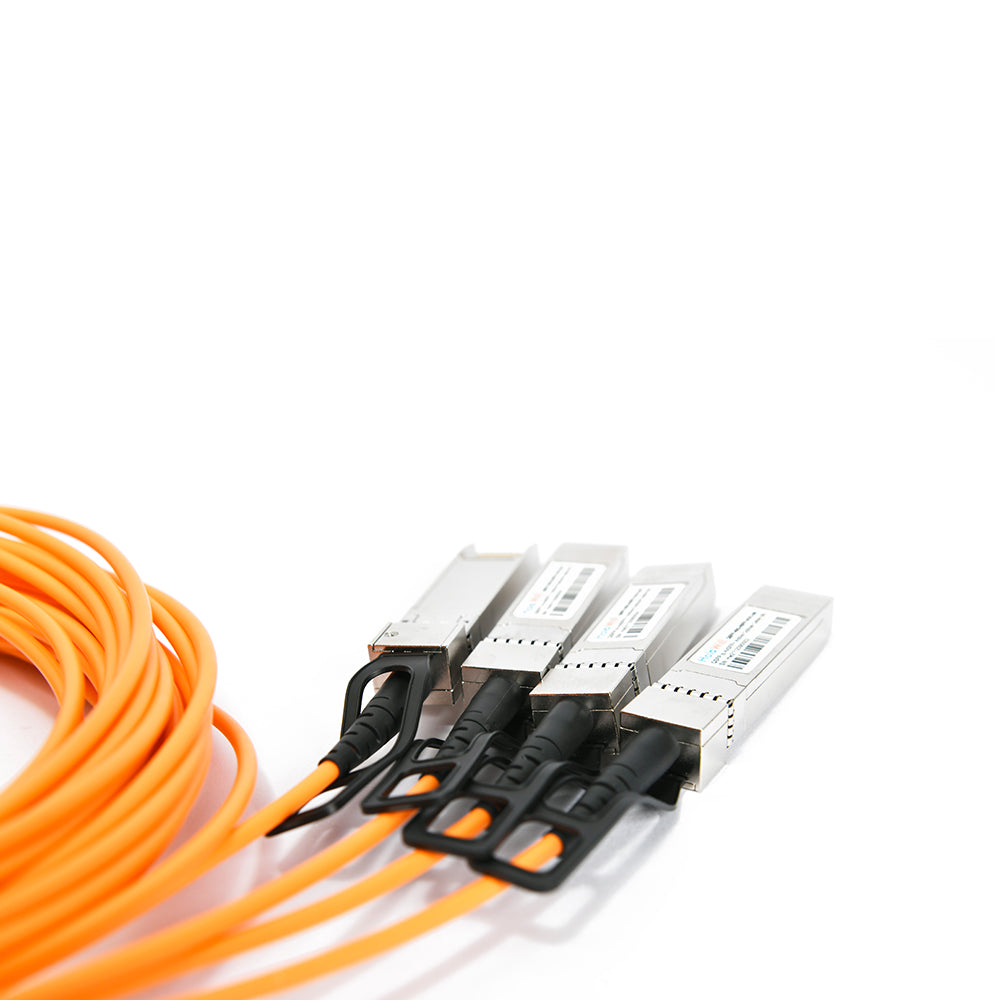

QSFP-40G-4×SFP-AOC QSFP+ 40G to 4×SFP+ 10G Active Optical Cable

Compatible:Cisco
Cable Length:1m
Quantity:
  • QSFP+ module power consumption <1.5W, SFP+ module power consumption <0.35W
  • Operating data rate 41.25/10.3125 Gb/s.
  • Maximum link length of 300m on OM3 MMF
  • Hot Pluggable QSFP+/SFP+ form factor

The Halowill ’s QSFP28 active optic cables are a high performance, low power consumption, long reach interconnect solution supporting 100G Ethernet ,or InfiniBand QDR/DDR/SDR, 12.5G/10G/8G/4G/2G fiber channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba. This QSFP28 AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 25.325Gb/s, providing an aggregated rate of 101.3Gb/s. The Halowill ’s QSFP28 AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.

CERTIFICATES

Our products have passed authoritative certification and complied with international quality standard

Description
Part Number QSFP28-100G-AOC
Vendor Name Halowill
Connector Type QSFP28 to QSFP28
Minimum Bend Radius 7.5mm
Jacket Material OFNP
Receiver Type PIN
Wavelength 850nm
MTBF About 50 Million Hours
Power supply 3.3V
Max Data Rate 100Gbps
Cable Length 1-100m
Cable Type Optical Cable
Transmitter Type VSCEL
CDR Support
Power Consumption <3.5W
Operating Temperature 0 to 70°C
Protocols 100G Ethernet, InfiniBand 4xFDR/EDR
