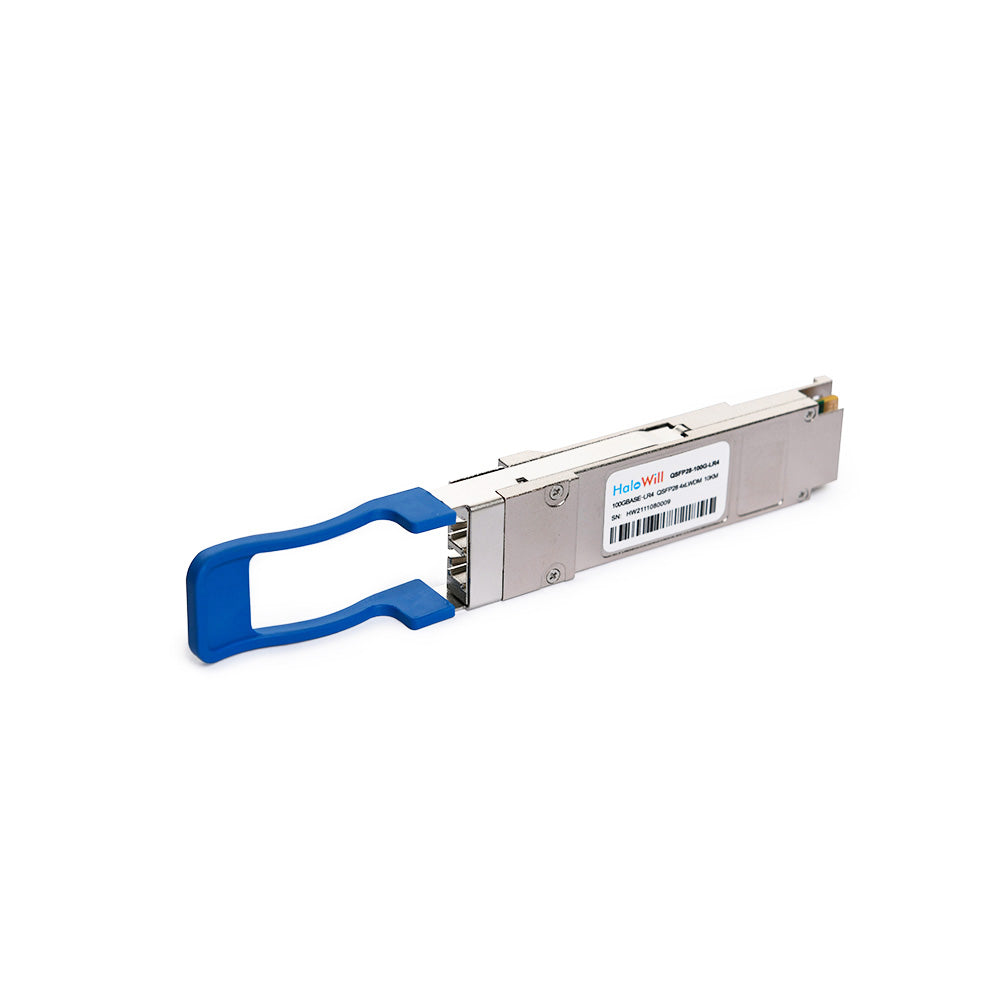

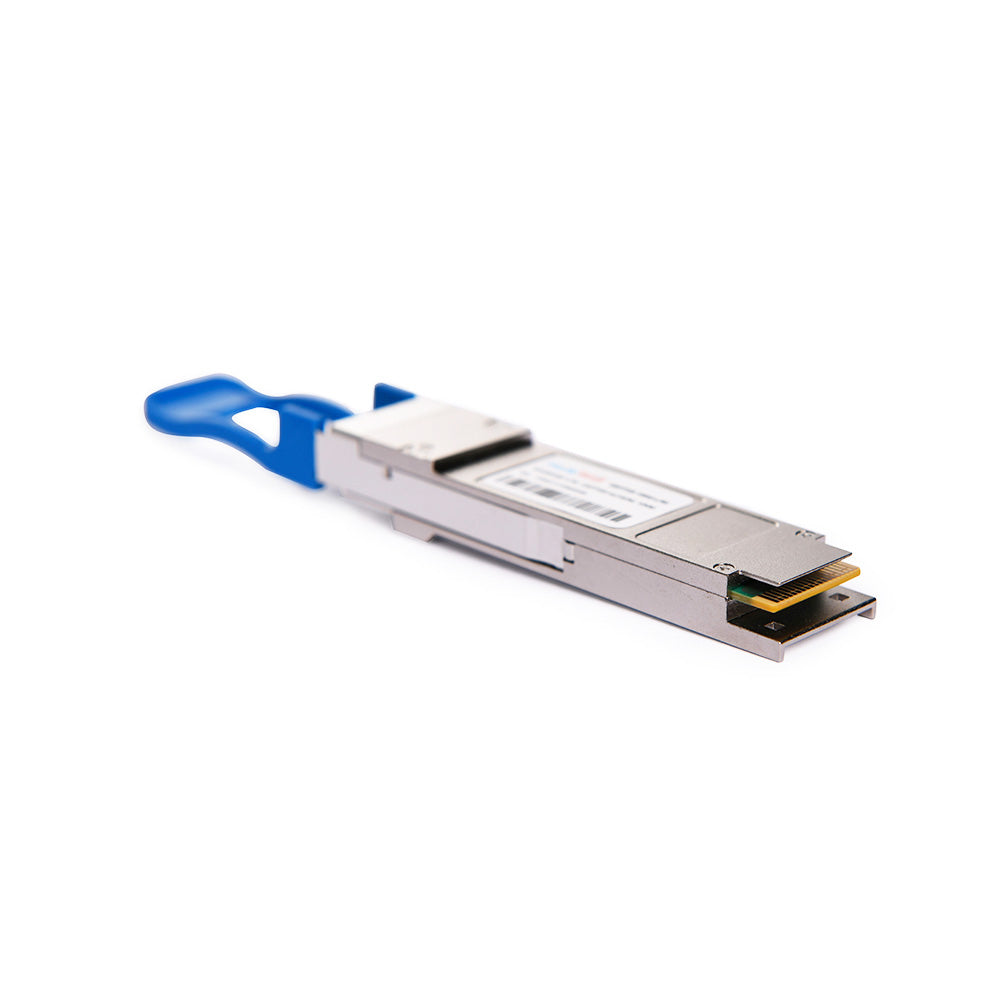

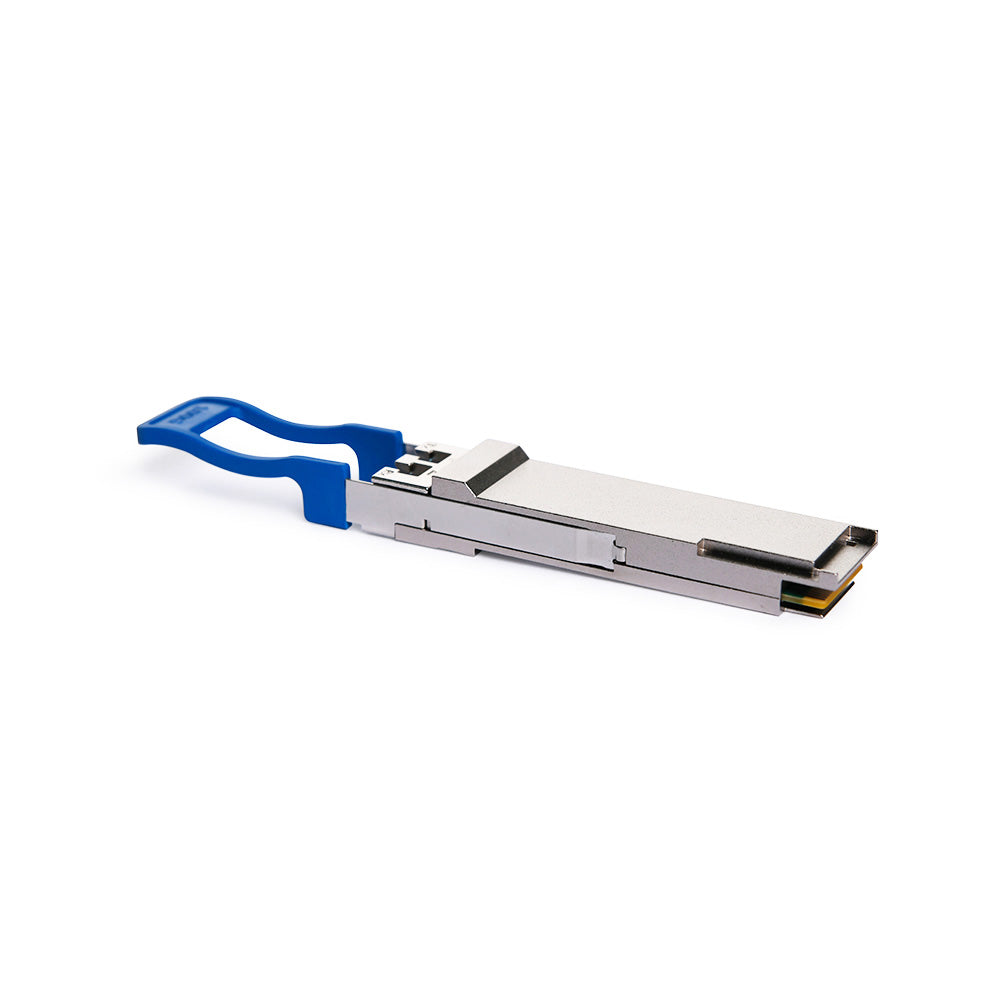

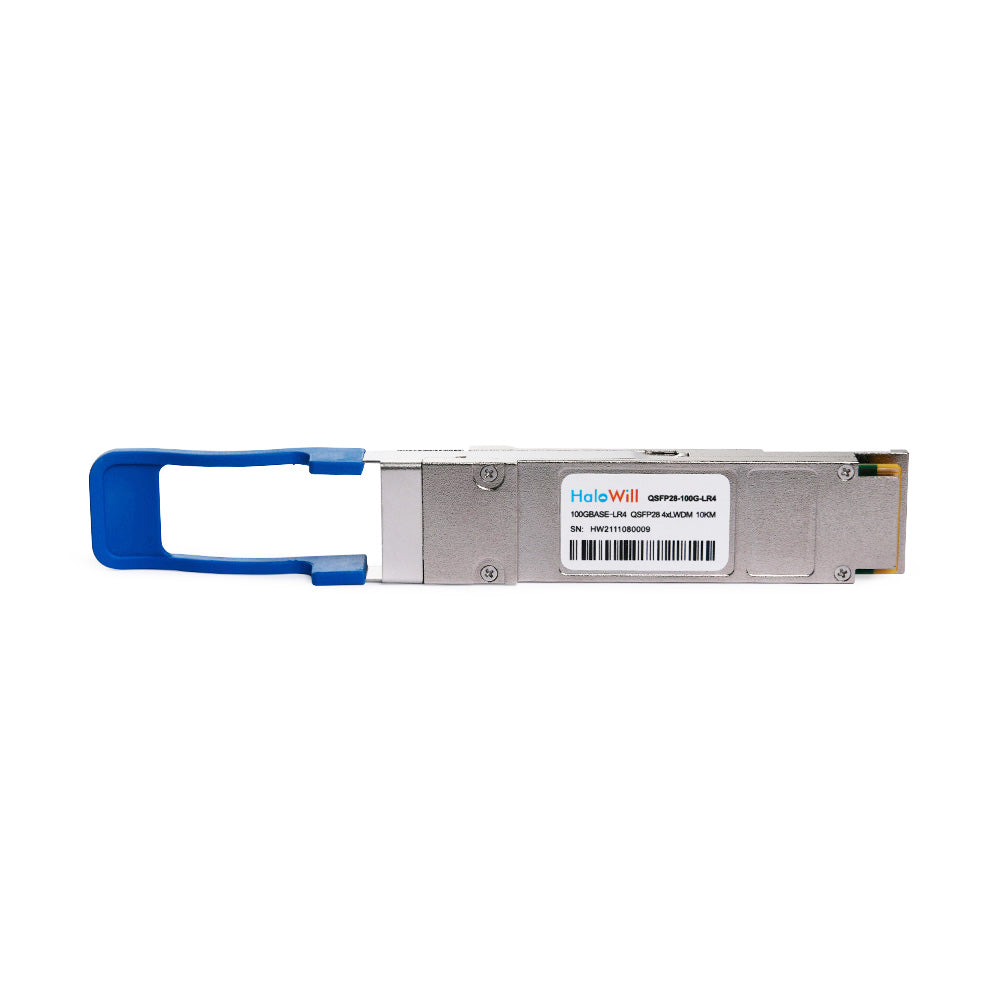

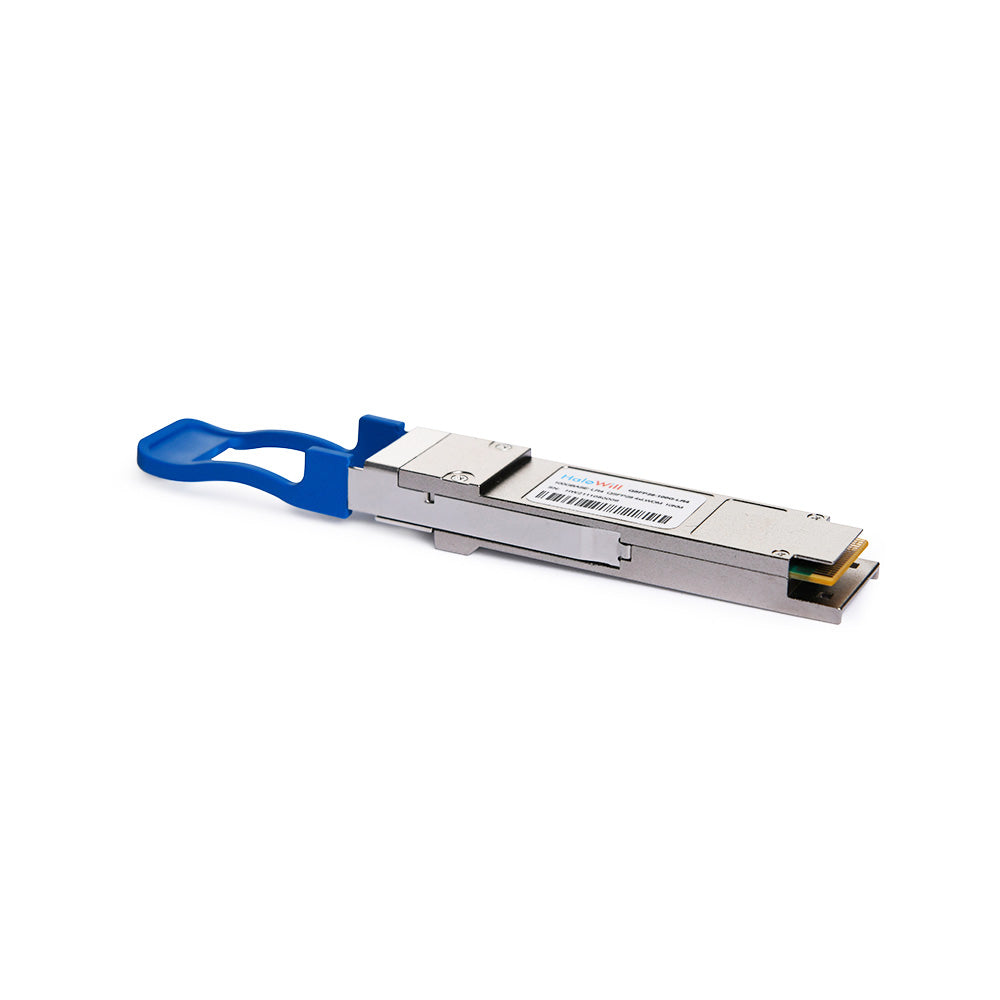

QSFP28-100G-LR4
- High Quality OCLARO Chip
- DFB+PIN, Built-in digital diagnostic function
- ≤3.5W Low Power Consumption
- Compliant to IEEE 802.3ba 100GBASE-LR4
- Up to 10km reach for G.652 SMF
- Hot Pluggable QSFP28 MSA Compliant
- For Data Center and Telecom Applications
This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
CERTIFICATES
Our products have passed authoritative certification and complied with international quality standard
Description |
|
| Part Number | QSFP28-100G-LR4 |
| Vendor Name | HaloWill |
| Form Factor | QSFP28 |
| Wavelength | 1310nm |
| Connector | LC Duplex |
| Transmitter Type | 4 x LAN WDM DML (DFB) |
| Data Rate | up to 104Gbps (4x26Gbps) |
| Reach | 10km |
| Cable Type | SMF |
| DDM/DOM | Supported |
| TX Power | -4.3~4.5dBm |
| Power Consumption | ≤3.5W |
| Modulation Format | NRZ |
| Packaging | COB |
| Receiver Type | PIN |
| Operating Temperature | 0 to 70°C |
| Receiver Sensitivity | <-8.6dBm |
| Extinction Ratio | >4dB |
| CDR | TX & RX Built-in CDR |
| Host FEC | Supported |
| BER | 1E-12 (without FEC) |
| MTBF | 5,000,000 hours |
| Warranty | 3 years |
| Protocols | IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636 |
| Application | Data Center, 100G Ethernet |
APPLICATION
QSFP28 transceivers are suitable for different 100G network solutions
100G PRODUCTS FOR:
ETHERNET
DATA CENTER
TELE-COMMUNICATION
METROPOLITSN AREA NETWORK
QUALITY CONTROL
Professional QC team and dvanced testing equipments contribute a lot to the reliable quality of products. Every optical transceiver has been tested strictly before delivery to avoid after-sales issues.
Service
| Downloads | Datasheet |
| Package | Anti static plastic box+Paper box |
