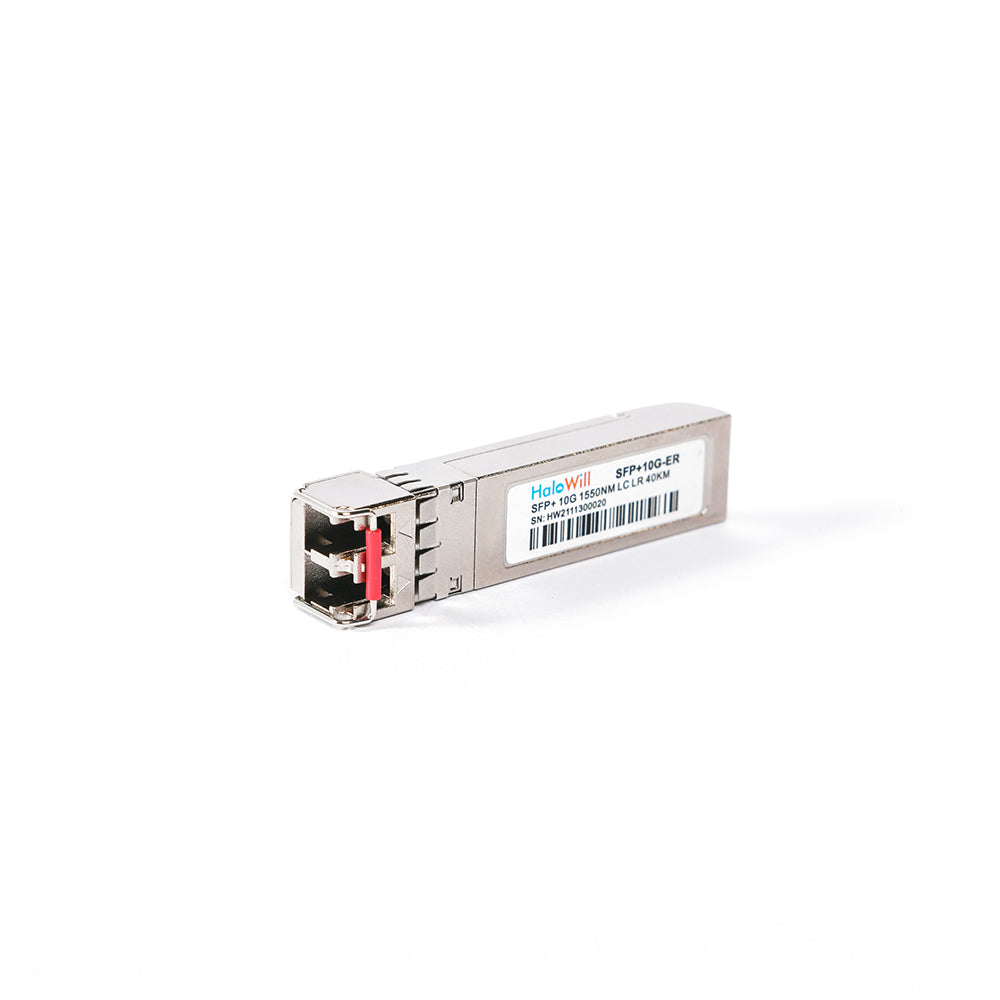

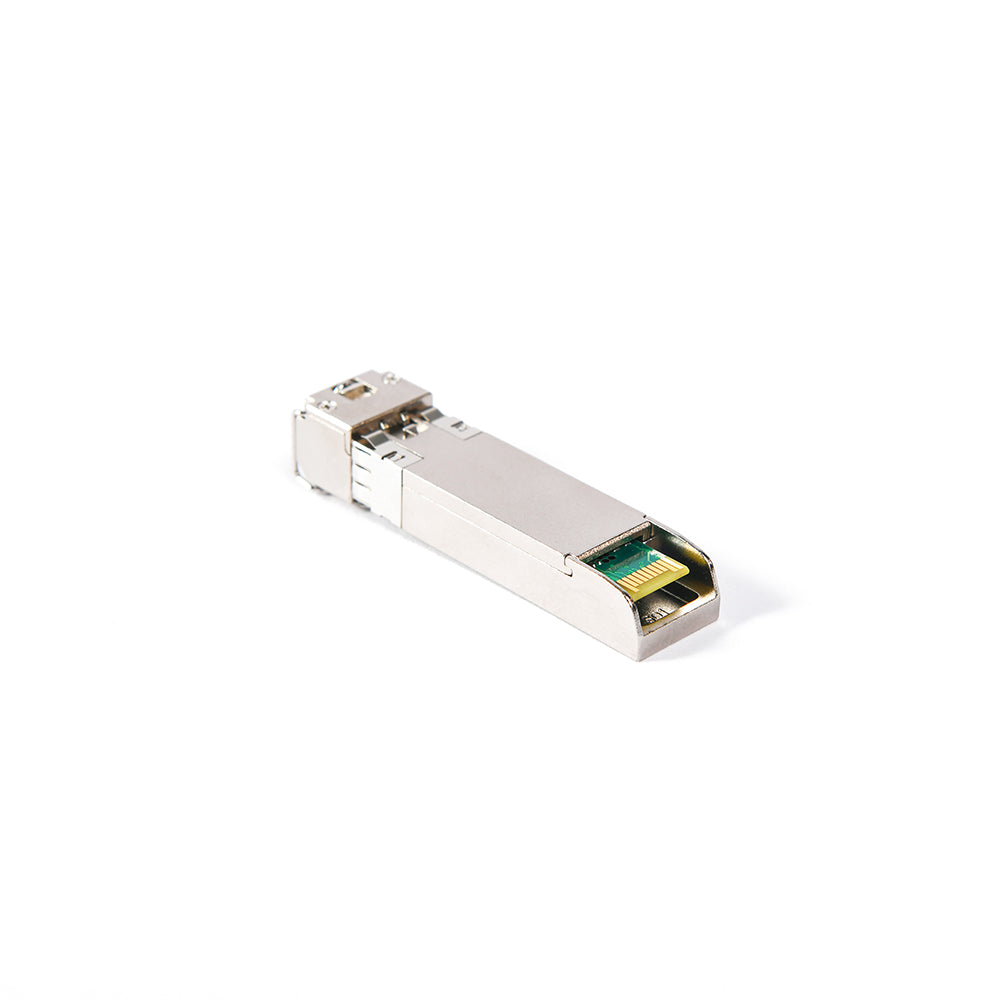

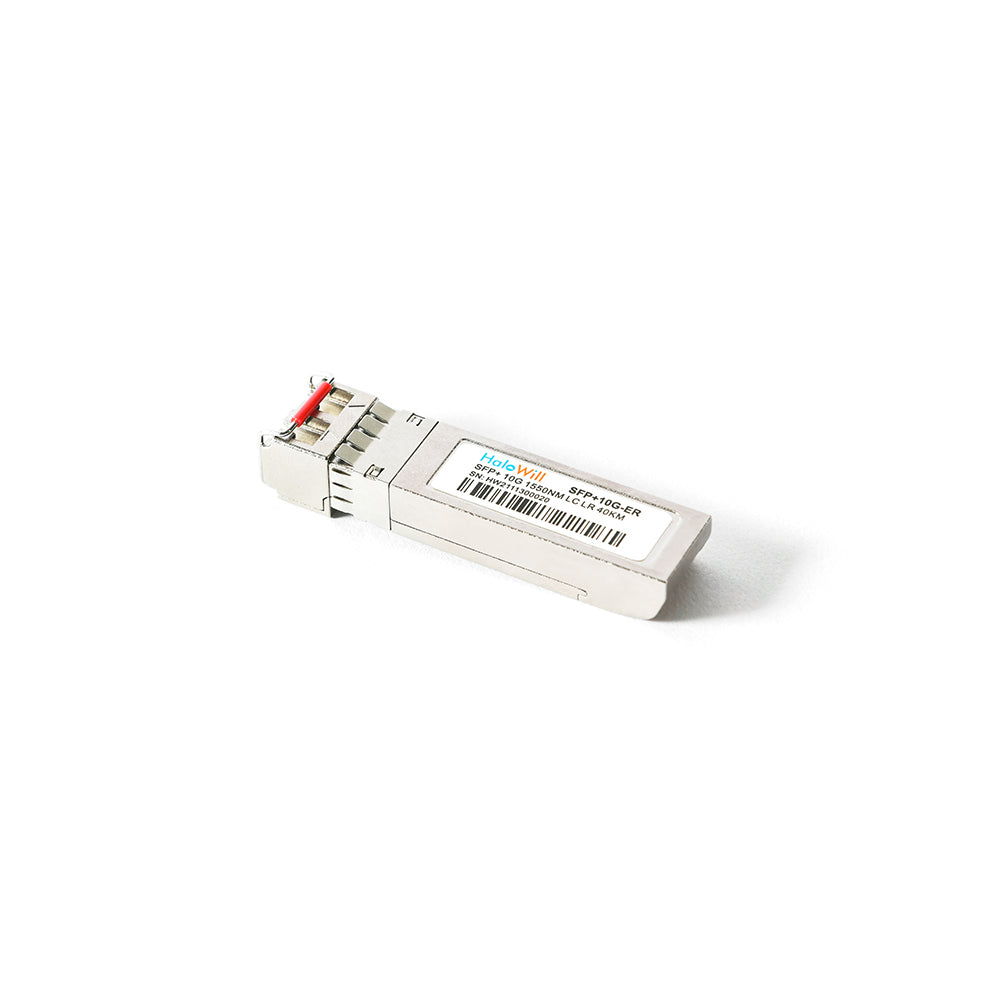

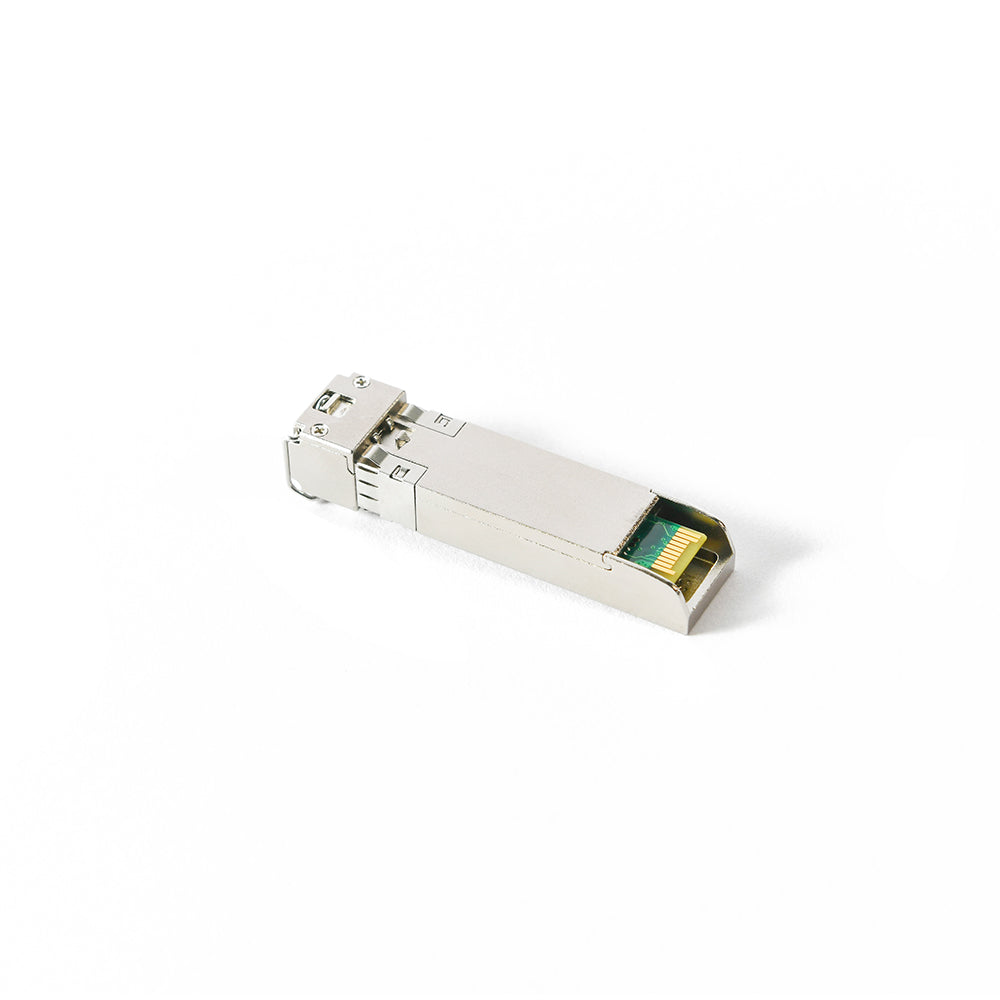

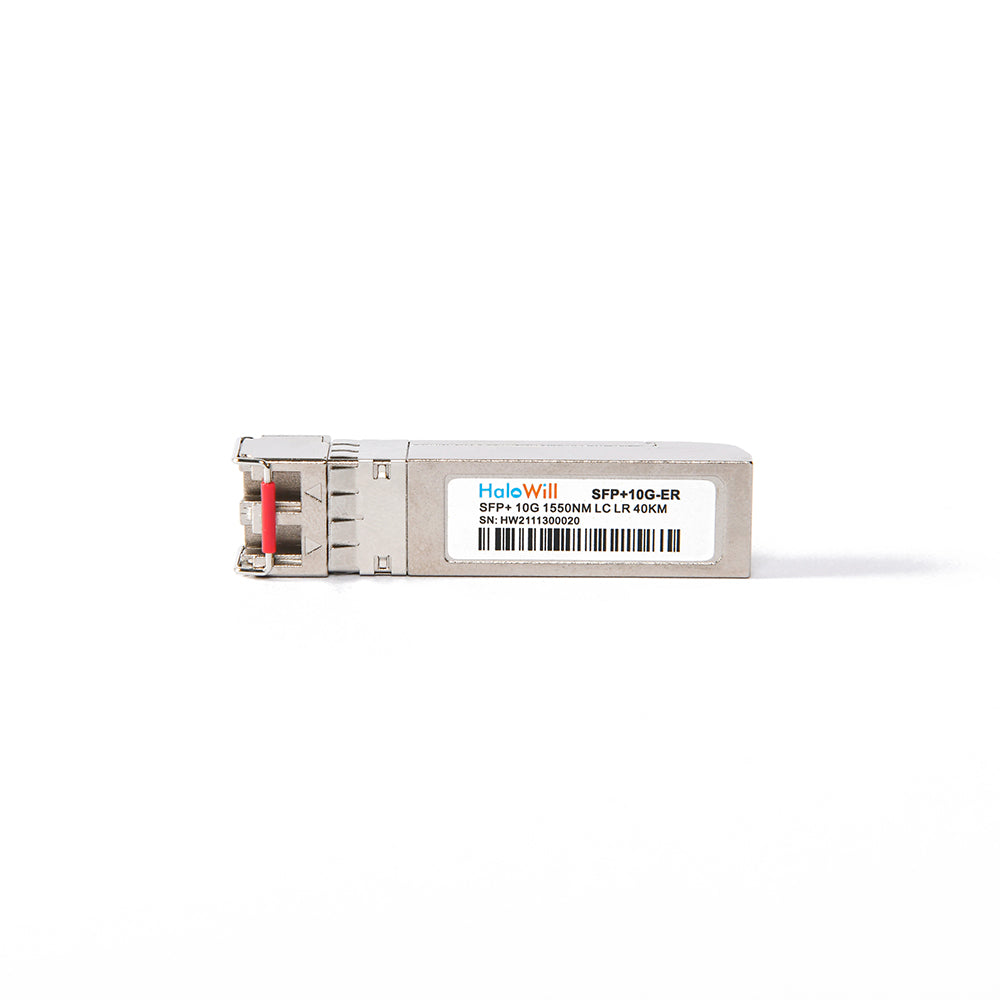

SFP+10G-ER
- Up to 11.3Gb/s data links
- Un-cooled 1550nm Cooled EML laser and PIN photodiode
- Electrical interface compliant to SFF-8431
- Hot Pluggable SFP+ MSA Compliant
- Maximum link length of 40km on SMF
The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 40km transmission distance with SMF.
The transceiver consists of three sections: a Cooled EML laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
CERTIFICATES
Our products have passed authoritative certification and complied with international quality standard
Description |
|
| Part Number | SFP+10G-ER |
| Vendor Name | HaloWill |
| Form Factor | SFP+ |
| Wavelength | 1550nm |

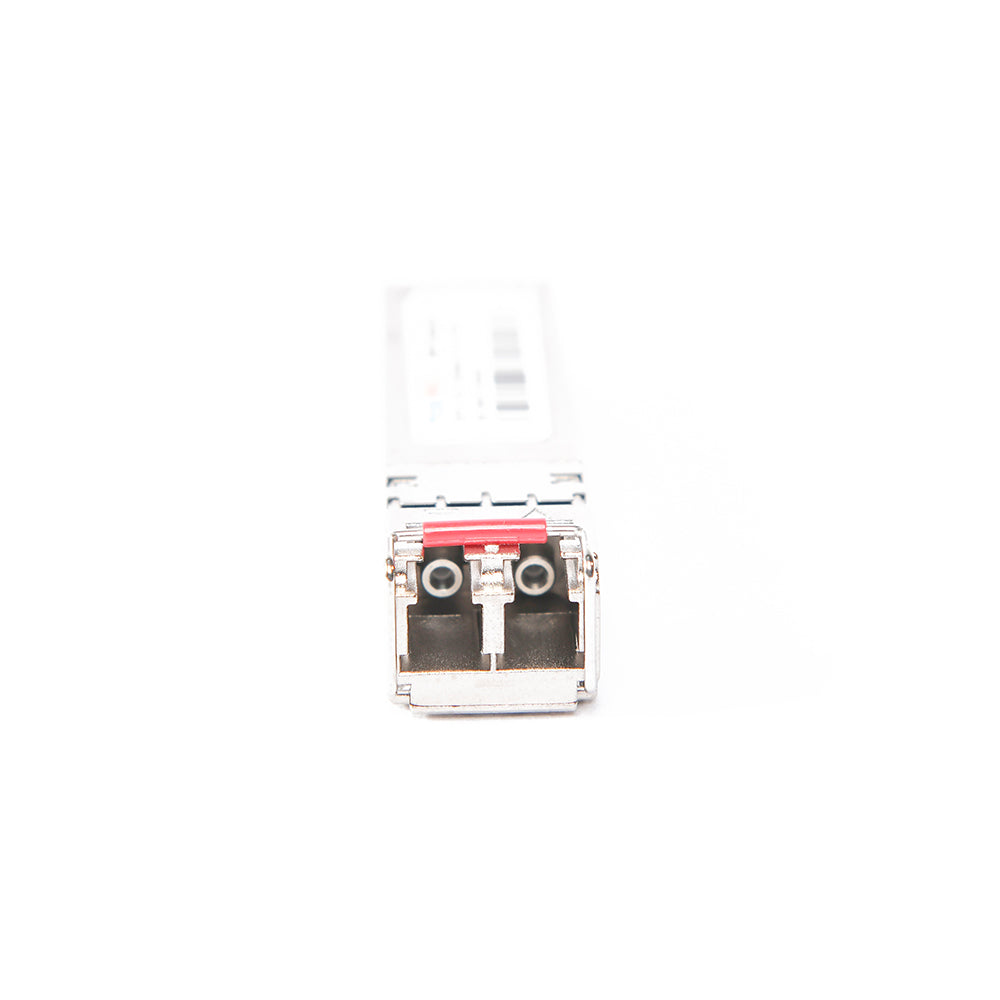

| Connector | LC Duplex |
| Transimitter Type | EML |
| Data Rate | 8.5-10.51875Gbps |
| Reach | 40km |
| Cable Type | MMF |
| DDM/DOM | Supported |
| TX Power | +/-3dBm |
| Receiver Sensitivity | <-16dBm |
| Receiver Overload | 0.5dBm |
| Receiver Type | PIN |
| Operating Temperature | 0 to 70°C |
| Extinction Ratio | >8.2dB |
| Host FEC | Supported |
| BER | 1E-12 |
| Warranty | 3 years |
| Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
| Application | 10 Gigcabit Ethernet,1xInfiniBand QDR, DDR, SDR,4G and 8G Fibre Channel Applications,Servers, switches, storage and host card adapters; |
APPLICATION
10G PRODUCTS FOR:
data centers, Servers, switches, storage and host card adapters, service provider transport applications
QUALITY CONTROL
Professional QC team and dvanced testing equipments contribute a lot to the reliable quality of products. Every optical transceiver has been tested strictly before delivery to avoid after-sales issues.
