Halowill

QSFP-40G-LR4 20KM

Sale price$179.00

Main description:
QSFP+ 40GBase LR4 1310nm 20km SMF DOM LC Optical Transceiver

Compatible:Cisco
Quantity:

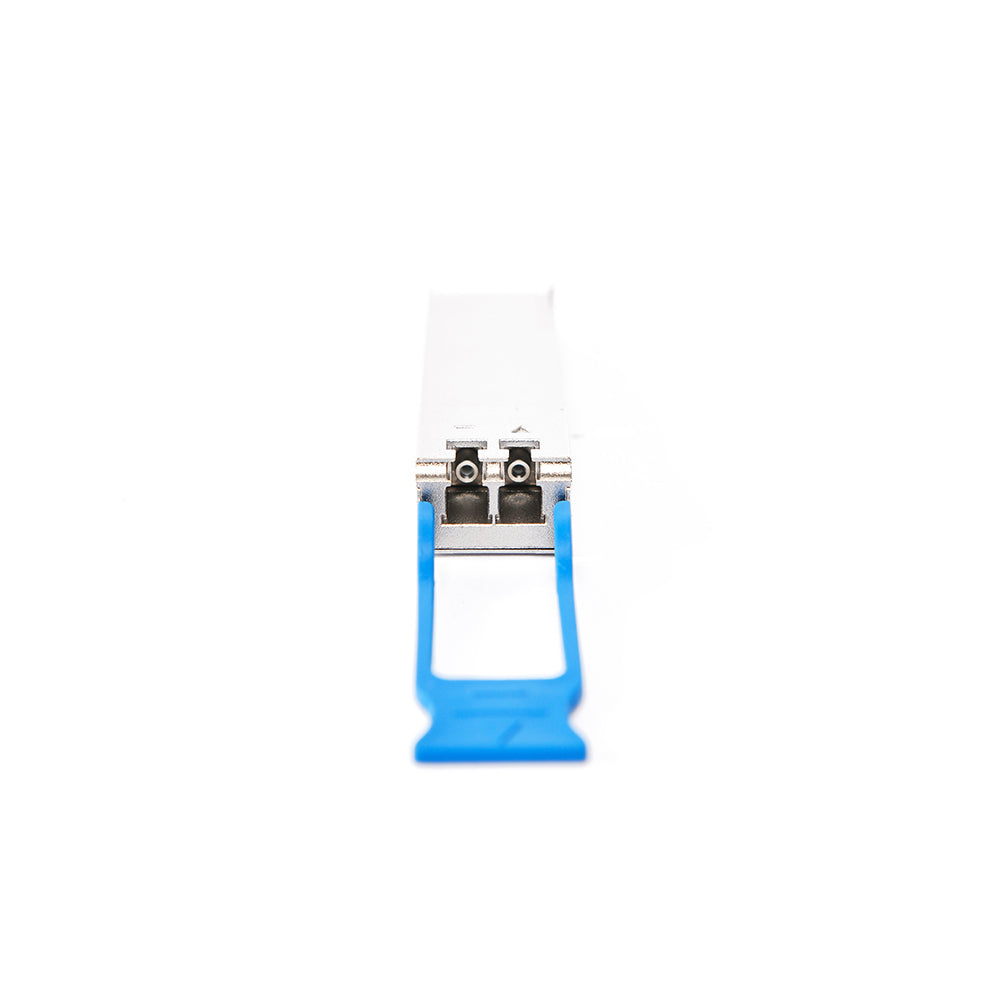

  • Duplex LC connector
  • Compliant with QDR/DDR Infiniband data rates
  • Maximum power consumption 3.5W
  • Transmission data rate up to 11.3Gbit/s per channel
  • Up to 20km transmission of SMF
  • For Data Center and 40G Telecom connections
  • Hot Pluggable QSFP28 MSA Compliant

This product is a transceiver module designed for 2m-20km optical communication applications. The design is compliant to 40GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4CWDM channels signals, and converts them to 4 channel output electrical data.The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as
members of the CWDM wavelength grid defined in ITU-T G.694.2. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.

CERTIFICATES

Our products have passed authoritative certification and complied with international quality standard

Description
Part Number QSFP-40G-LR4-20KM
Vendor Name HaloWill
Form Factor QSFP+
Wavelength 1310nm
Connector LC Duplex
Transimitter Type DFB CWDM
Data Rate up to 44.8Gbps (4×11.2Gbps)
Reach 20km
Cable Type SMF
DDM/DOM Supported
TX Power -7~2.3dBm
Power Consumption <3.5W
Transmit and Dispersion Penalty <2.6dB
Packaging COB
BER 1E-12
Receiver Type PIN
Operating Temperature 0 to 70°C
Receiver Sensitivity <-12dBm
Extinction Ratio >3.5dB
Modulation Format NRZ
Host FEC Supported
Warranty 3 years
Protocols OTN OTU3, 40G Ethernet, Infiniband, FiberChannel, SATA/SAS3, MSA Compliant
Application 40GBASE Ethernet, OTN OTU3 C4S1-2D1, OTU3e1 and OTU3e2, Data Center
