Halowill

SFP-10G-ER

Sale price$29.00

Main description:

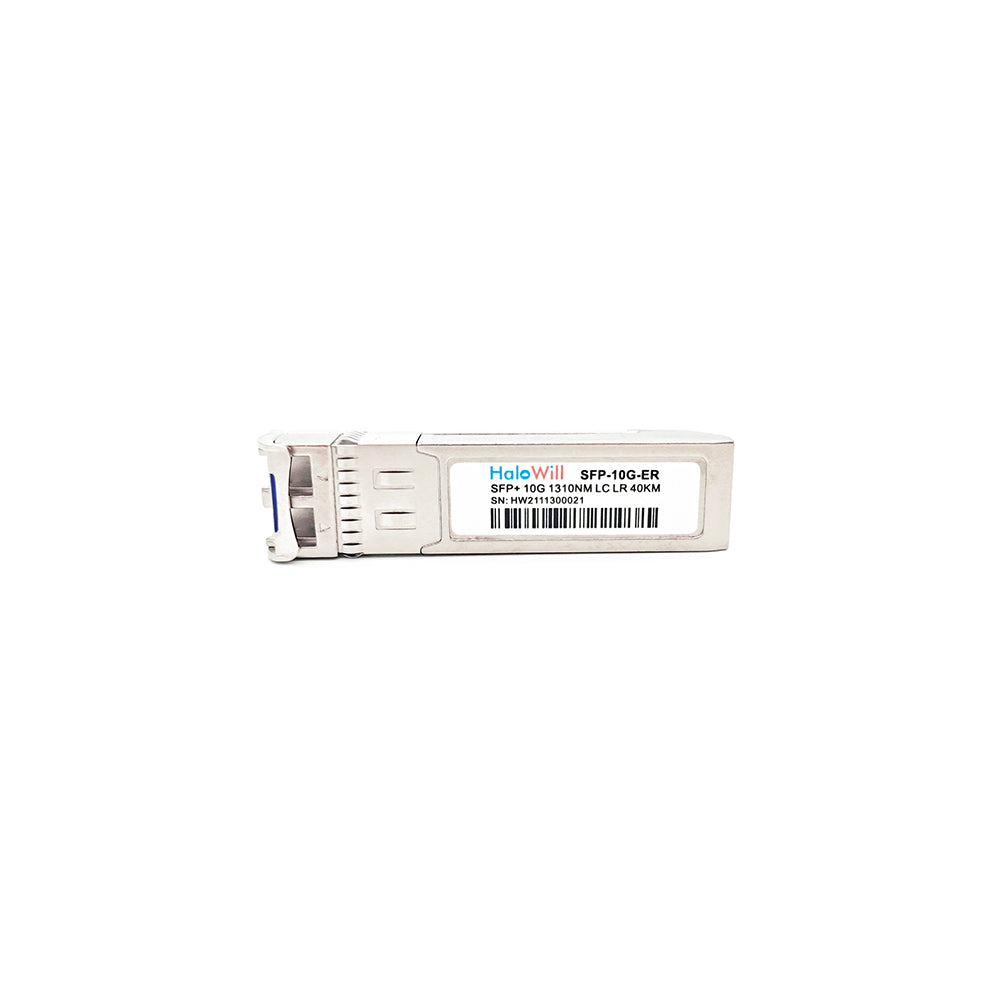

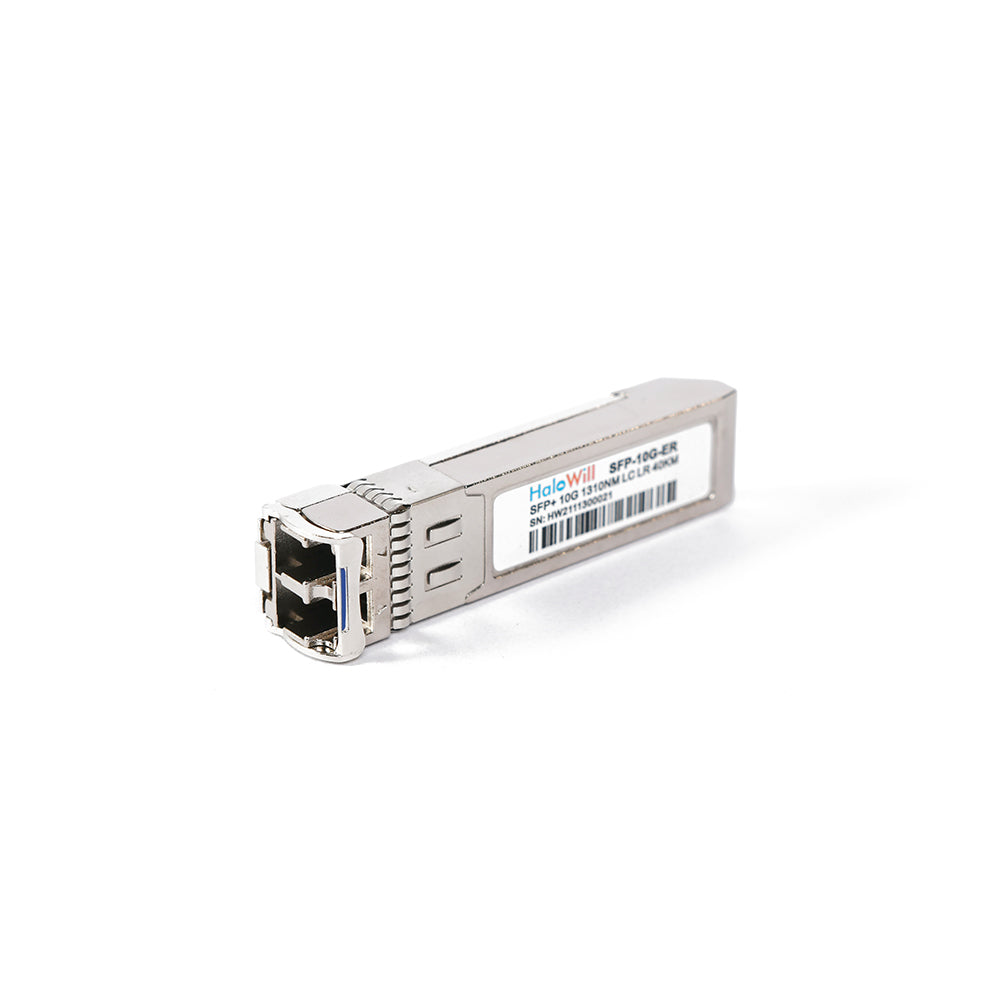

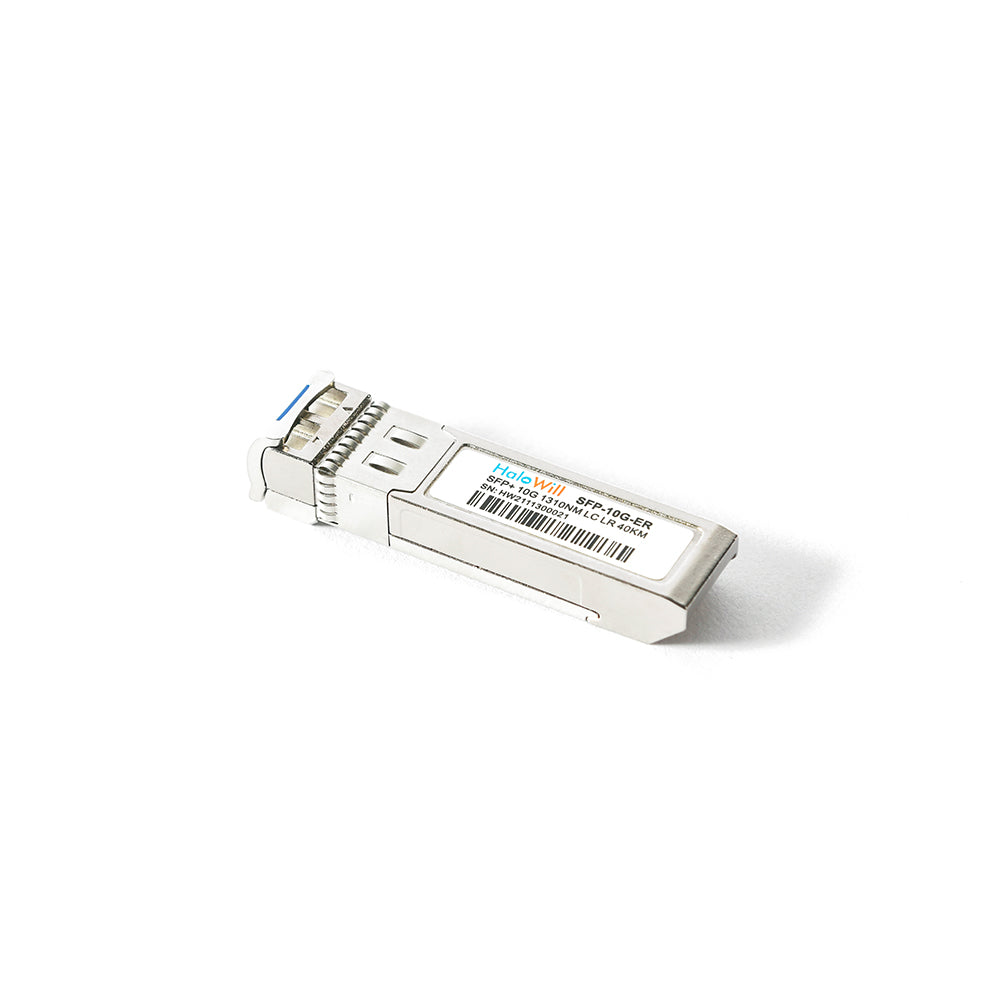

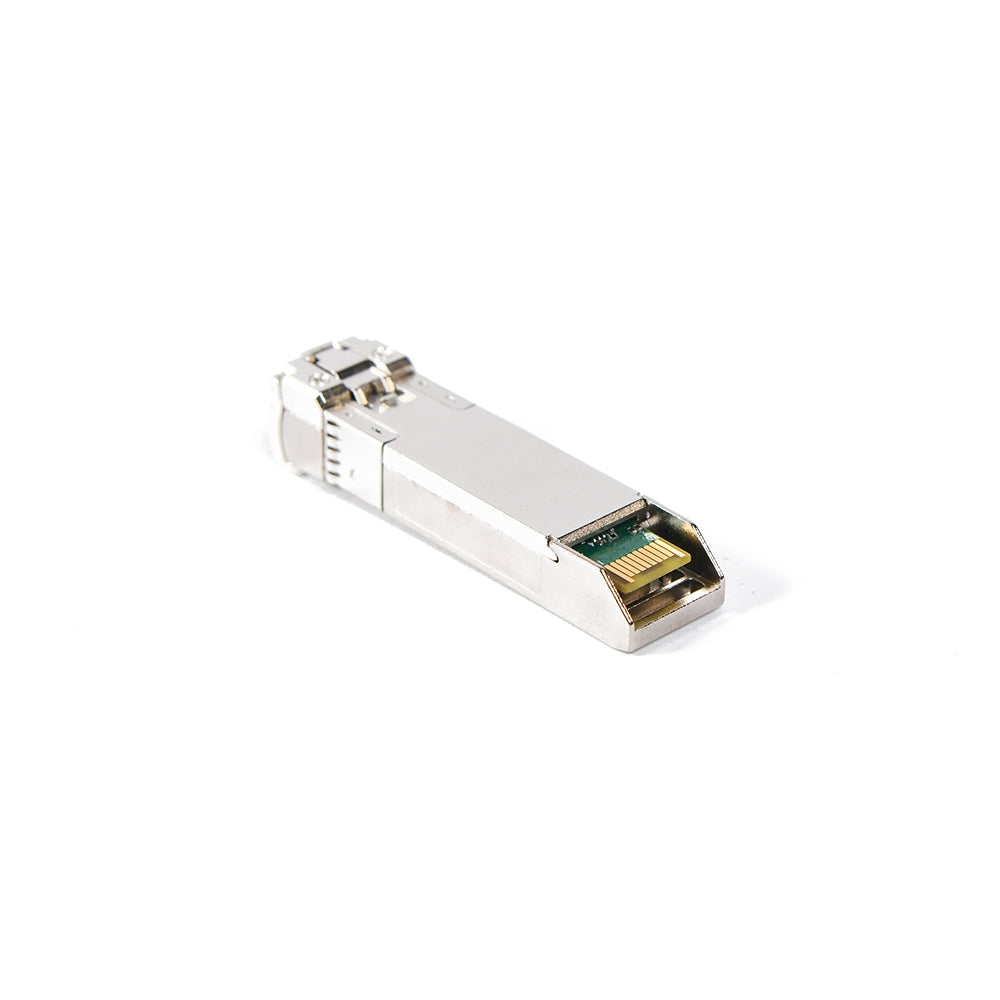

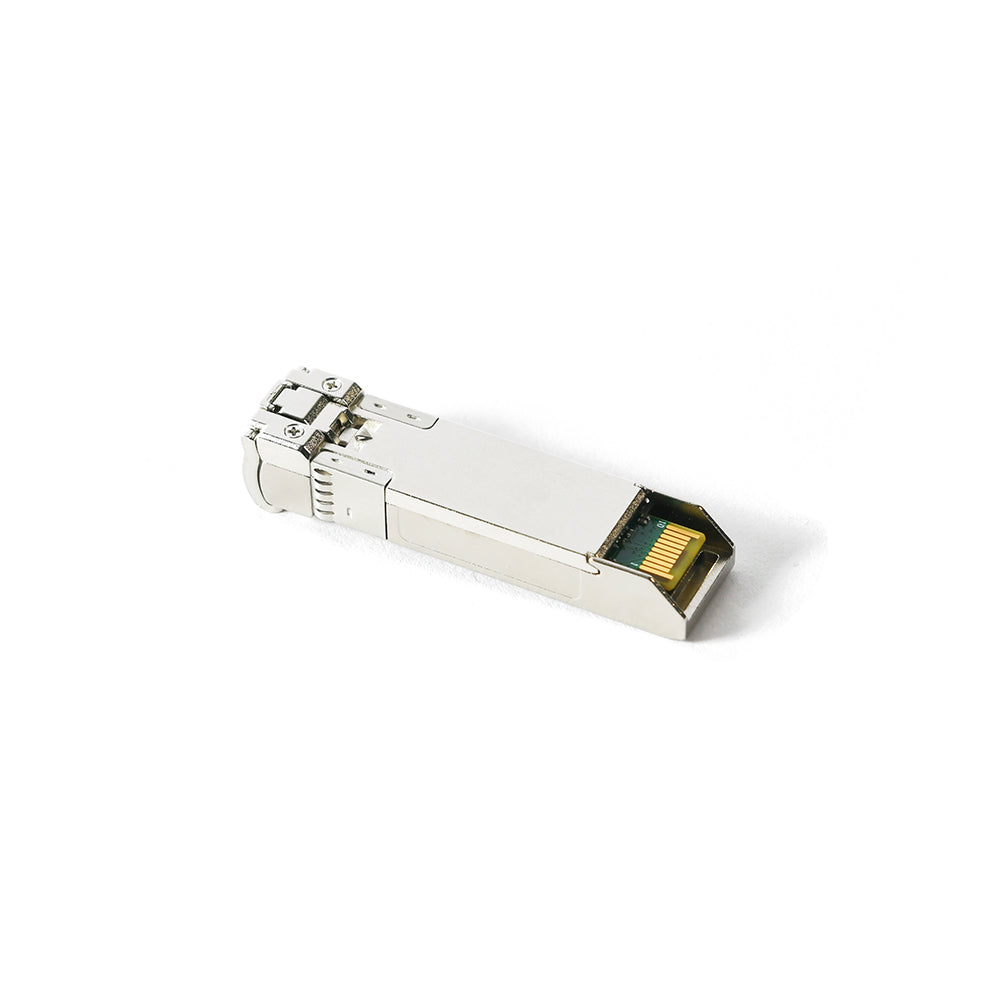

10G SFP+ ER 1310nm 40Km SMF DOM LC Optical Transceiver

Compatible:Cisco
Quantity:
  • Supports from 9.83Gb/s to 11.3 Gb/s bit rates
  • 1310nm DFB laser transmitter and PIN receiver
  • Electrical interface compliant to SFF-8431
  • Hot Pluggable SFP+ MSA Compliant
  • Maximum link length of 40km on SMF

SFP-10G-ER SFP+ optical transceivers is based on the Ethernet IEEE 802.3ae standard and the SFF-8431 standard, providing a fast and reliable interface for 10G Ethernet applications,the maximum transmission distance is up to 40km.The product implements digital diagnostics via a 2-wire serial bus ,compliant with the SFF-8472 standard.

CERTIFICATES

Our products have passed authoritative certification and complied with international quality standard

Description
Part Number SFP-10G-ER
Vendor Name HaloWill
Form Factor SFP+
Wavelength 1310nm
Connector LC Duplex
Transimitter Type DFB
Data Rate 8.5-10.51875Gbps
Reach 40km
Cable Type MMF
DDM/DOM Supported
TX Power  0~-5dBm
Receiver Sensitivity  <-14.4dBm
Receiver Overload 1dBm
Receiver Type PIN
Operating Temperature 0 to 70°C
Extinction Ratio >3.5dB
Host FEC Supported
BER 1E-12
Warranty 3 years
Protocols IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI
Application 10 Gigcabit Ethernet,1xInfiniBand QDR, DDR, SDR,4G and 8G Fibre Channel Applications,Servers, switches, storage and host card adapters;
